250KVA ATEX Certified Zone 2 Temp Class T3 Explosion Proof Diesel industrial Generator Set
| Prime Power | 250KVA/200KW |
| Standby Power | 110KVA/88KW |
| Noise Level | ≤75 dbM @7M |
| Prime power. The rating is available for an unlimited of annual operating hours in variable load applications, in accordance with ISO8528, 10% overload is available for a period of 1 hour within 12 hours period of operation, in accordance with ISO 3046. |
| Standby power. The rating is applicable for supplying emergency power in variable load applications for up to 200 hours per year in accordance with ISO8528. Overload is not allowed. |
| Rated voltage. Available with customer requirement. |
| Genset Features All qualified generator sets are subjected to a comprehensive performance test which includes 0,25%,50% load, 75% load, 100% load, 110% load and to check, verify that all control systems, alarm and shut-down protection, Designed to comply with ISO8525/GB2820. High quality, reliable and complete power unit. Compact design Easy start and maintenance possibility. |
| The Explosion Proof Generator Set complied with ATEX standards Directive: 2014/34/UE-ATEX Standard: EN 60079 series / EN 1834 series / EN 1756 |
Main Features
Generator set will be suitable for Zone 2 IIA T3 according to ATEX
Wet weight of generator set including fuel oil is not more than 5 Tons.
Electric motor starting system
Stahl wall mounting sockets 63A series 8579 (Both 4 Pin and 5 Pin)
Four sets of Stahl wall mounting sockets 16A series 8572 (1P+N+PE, 3 Pin)
Lifting lug will be provided for Generator package
DNV 2.7.1 Skid and canopy & all proof load test will be certified by one of Certifying Authority as followings
DNV GL
ABS
Bureau Veritas
Lloyd's Register
K2 Specialist
Intertek
| Equipment | 150KVA Zone 2 Explosion-proof Diesel Engine Genset |
| Directive | 2014/34/UE-ATEX |
| Standard | EN 60079 series / EN 1834 series / EN 1755 |
| Convert to | Group II Equipment, Category 3G (ZONE 2 IIB T3 Gc) |
| Equipment | 5-1500KVA Explosion - proof Diesel Engine Genset |
| Directive | 2014/34/UE-ATEX |
| Standard | EN 60079 series / EN 1834 series / EN 1755 |
| Convert to | Group II Equipment, Category 3G ( Zone 2 II B T3 Gc) |

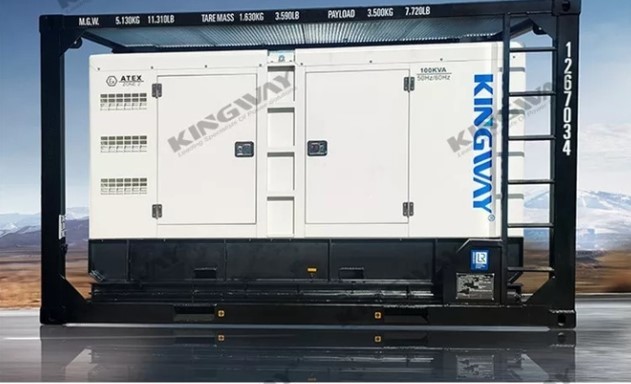

Diesel driven generator sets for applications in Hazardous Area ( Zone 2)
mounted in the DNV certified 2.7-1 Skid frame, 3 Phase + Neutral, 50/60Hz
Output
FAQ
Q. All Explosion Proof Equipments can pass through Zone 2 Certificate ?
A. We confirm all Kingway Zone 2 Explosion Proof Generator, Air Compressor, pump can pass through Zone 2 Certficate, DNV 2.7-1 Skid Frame, If the client need the BV Certificate, we can arrange that.
Q. Can we customize the genset ?
A. Yes,we can customize the colour,style,design.
Q. What is the payment terms ?
A. We accept 30% T/T as the deposit, and 70% balance payment before delivery.
Q.What is the delivery time?
A. Delivery within 90 days after deposit confirmed.
Q. What is warranty period?
A. One Year or 2000 Hours
